激光摻硼設備

設備名稱 Equipment Name

激光摻硼設備  Laser Boron Doping Equipment

設備型號 Equipment Model

SC-CP02L/RA

設備用途 Equipment Application

調用激光的方式作用于硼硅玻璃(BSG)表面，形成重摻，作為配套生產選擇性發射電極(SE)電池。

Equipment Application: Heavy doping is formed on the surface of the borosilicate glass (BSG) by SE laser doing equipment, which is used to manufacture selective emitter (SE) solar cells.

工藝流程  Process Flow

上料→ 拍照定位→ 加工→ 下料

Load→ Photo Positioning→ Processing→ Unload

技術特點  Features

1、產能大于8000片/小時（M10硅片）；Ct分解: 0.9s=（激光時間1.6s+激光切換時間0.2s）/2，即1.8s出2片。

Throughput＞8000pcs/h (M10 wafers);Cycle time: 0.9s= (laser 1.6s + laser switching time 0.2s)/2, 2pcs/1.8s.

2、激光器、掃描振鏡，場鏡及所有光學元器件均為業內知名品牌，具有優越的穩定性、可靠性。
The laser, scanning galvanometer,field lens and all optical components are well-known brands in PV industry,with superior stability and reliability.

3、對位采用高精度攝像頭，配合具有自主知識產權的運動學標定算法，實現高精度對位。
High precision camera alignment, with kinematic calibration algorithm with our patented software is used to achieve high-precision alignment.

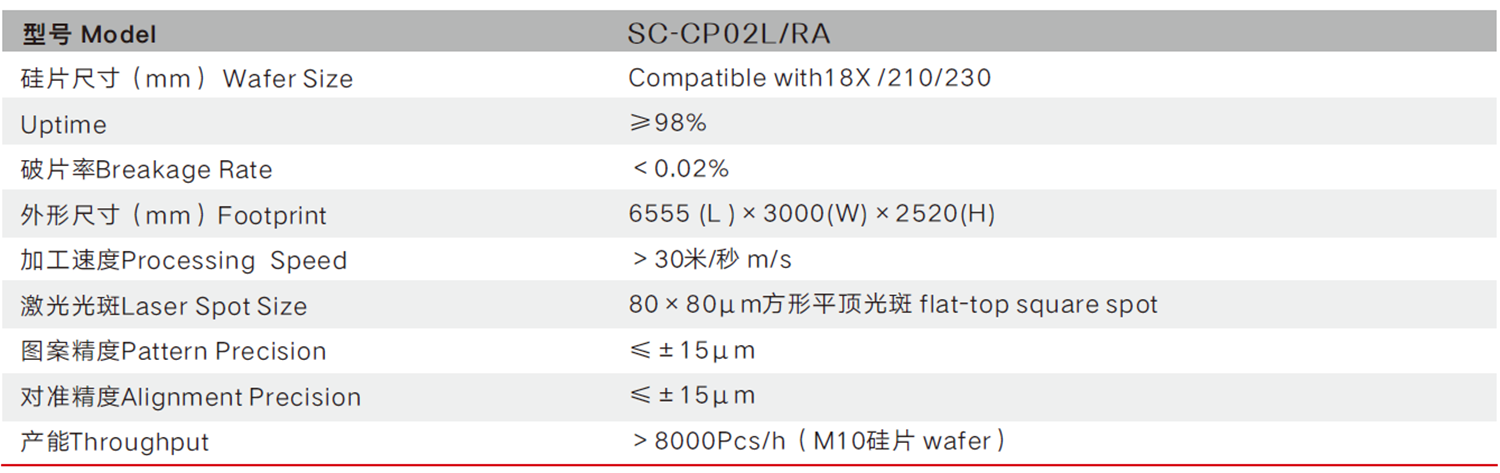

設備參數  Parameters
